Home / Washers & Dryers / Washing Machine / Universal Stacking Kit for Condenser & Heat Pump Dryers (White) - 2986960100

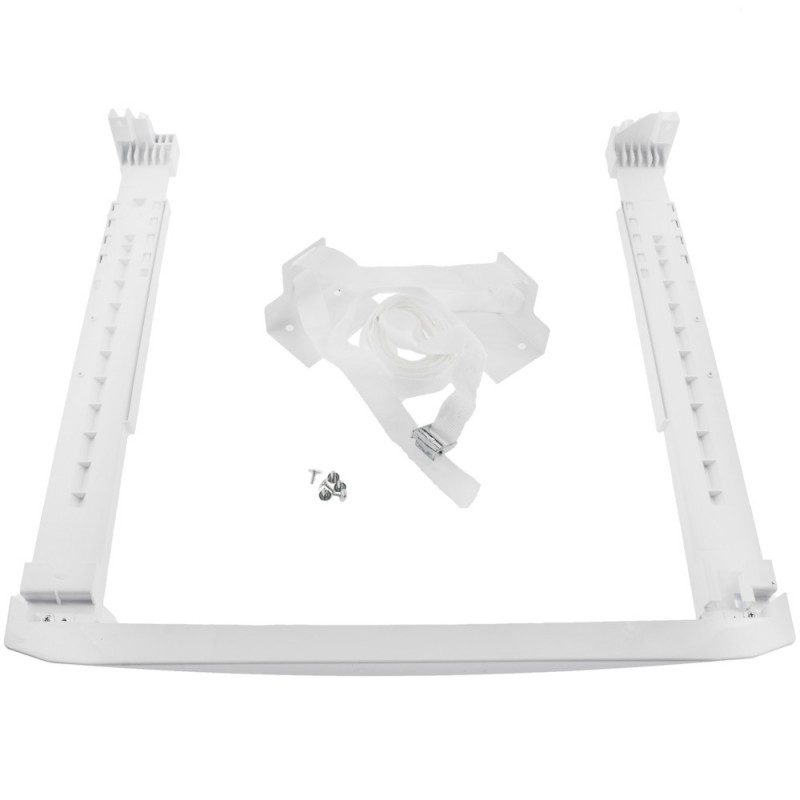

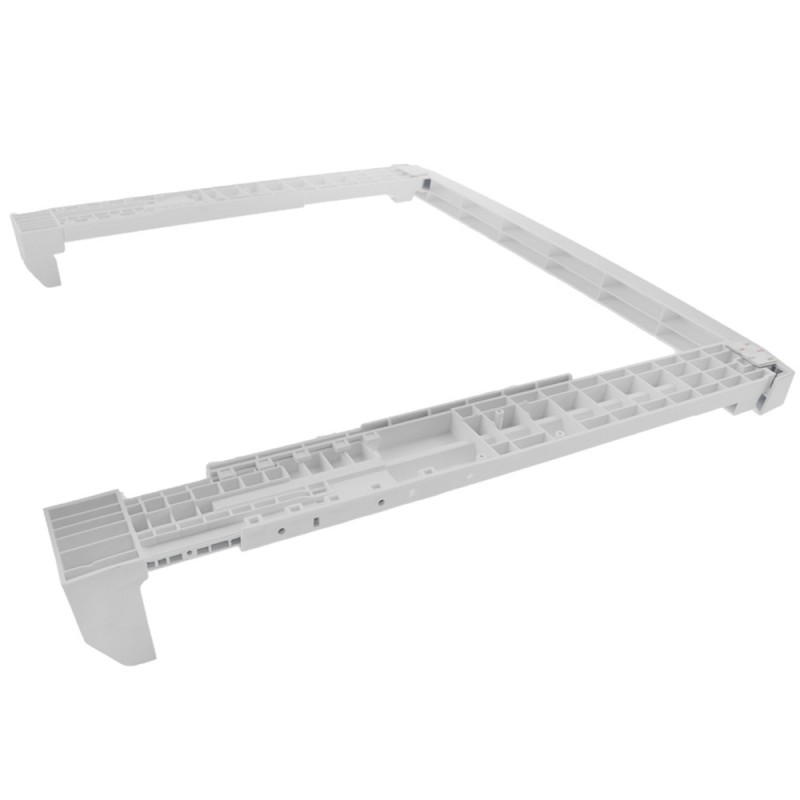

Universal Stacking Kit for Condenser & Heat Pump Dryers (White) - 2986960100

Stock Code: KG0034527
Universal Stacking Kit for Condenser & Heat Pump Dryers (White) - 2986960100
Universal Stacking Kit for Condenser & Heat Pump Dryers (White) - 2986960100
Universal Stacking Kit for Condenser & Heat Pump Dryers (White) - 2986960100
Universal Stacking Kit for Condenser & Heat Pump Dryers (White) - 2986960100
Universal Stacking Kit for Condenser & Heat Pump Dryers (White) - 2986960100
UPC: 2986960100
STACKING KIT WITH BELT   This product is designed for the installation of the Dryer on the Washing M... Read More
$64.17
Add to Cart
2 or more $57.75 5 or more $51.33

Universal Product

Suitable for many models.

Description
Universal Stacking Kit for Condenser & Heat Pump Dryers (White) - 2986960100

Product Classification: Original

STACKING KIT WITH BELT

  • This product is designed for the installation of the Dryer on the Washing Machine only.
  • Before installation, check if there are any sharp edges in the areas where the belt passes through.
  • During the initial installation and in case of re-installation, check for any damage on the belt and do not use damaged belts. A clearance of 1cm at least shall be allowed on the left and right of the machines after the installation with the belt; and no surface shall contact with the belt.
  • Tightening reference line (!) on the belt has been adjusted for machines with dimensions of 60cm x 84cm. If the dimensions of your machine are different, ignore the reference line, tighten the belt so that the belt shall be tight and the kit shall not move. After tightening the belt tightly, check that the belt buckle is locked by pulling on the belt.


Cleaning the sensor

There are dampness sensors in the dryer that detect whether the laundry is dry or not. To clean the sensors:

  • Open the loading doorof the dryer.
  • Allow the dryer to cool down if it is still hot due to the drying process.
  • Wipe the metal surfaces of the sensor with a soft cloth, dampened with vinegar and dry them.


Cleaning the filter drawer

Lint and fiber that could not be captured by the lint filter are blocked in the filter drawer behind the kick plate. Filter Drawer Cleaning warning light will light up maximum at every 3 drying cycles as a reminder. There is a two-level filter in the filter drawer. Te first level is the filter drawer sponge and the second level is the filter cloth. To clean the filter drawer:

  • Press the kick plate button to open the kick plate.
  • Remove the filter drawer cover by turning it in the direction of arrow.
  • Pull out the filter drawer.


Preparing laundry for drying

  • Laundry may be tangled with each other after washing. Separate the laundry items before placing them into the dryer.
  • Dry garments having metal accessories such as zippers, inside out.
  • Fasten the zippers, hooks and buckles and button sheets.
  • Things to be done for energy saving
  • Spin your laundry at the highest speed possible when washing them. Thus, the drying time is shortened and energy consumption is reduced.
  • Sort out the laundry depending on their type and thickness. Dry the same type of laundry together. For example thin kitchen towels and tableclothes dries earlier than thick bathroom towels.
